Products

Choose the panel that fits your project.

Compare four profiles, with dimensions, lengths, accessories and downloads together in one place.

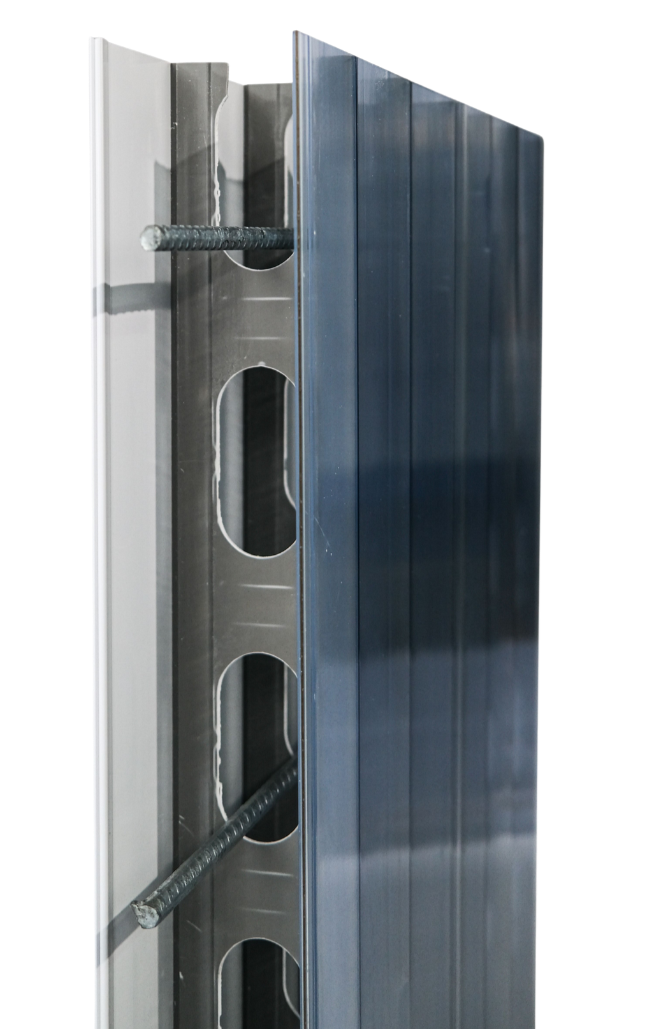

110 mm profile

Depth: 110 mm
Width: 300 mm

Specifications

Standard lengths: 2.8 m · 3.0 m · 3.3 m · 3.6 m · 4.0 m
Custom lengths: 1.0 m – 8.0 m

Accessories

Bottom track BT-110
Top cap TC-110
Panel connector PC-110
End caps ECM-110 · ECF-110
Junction track JT-110
Panel spacer PS-110
Corner piece CP-110

Download 110 mm accessory details (PDF) →

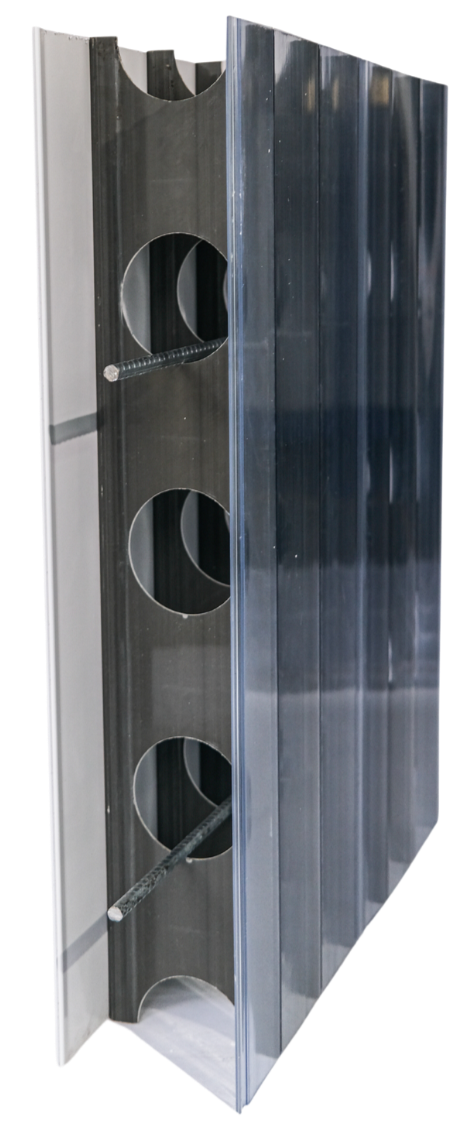

155 mm profile

Depth: 155 mm
Width: 300 mm

Specifications

Standard lengths: 2.8 m · 3.0 m · 3.3 m · 3.6 m · 4.0 m
Custom lengths: 1.0 m – 8.0 m

Accessories

Bottom track BT-155
Top cap TC-155
Panel connector PC-155
End caps ECM-155 · ECF-155
Junction track JT-155
Panel spacer PS-155
Corner piece CP-155
Curved panel CVPD-155

Download 155 mm accessory details (PDF) →

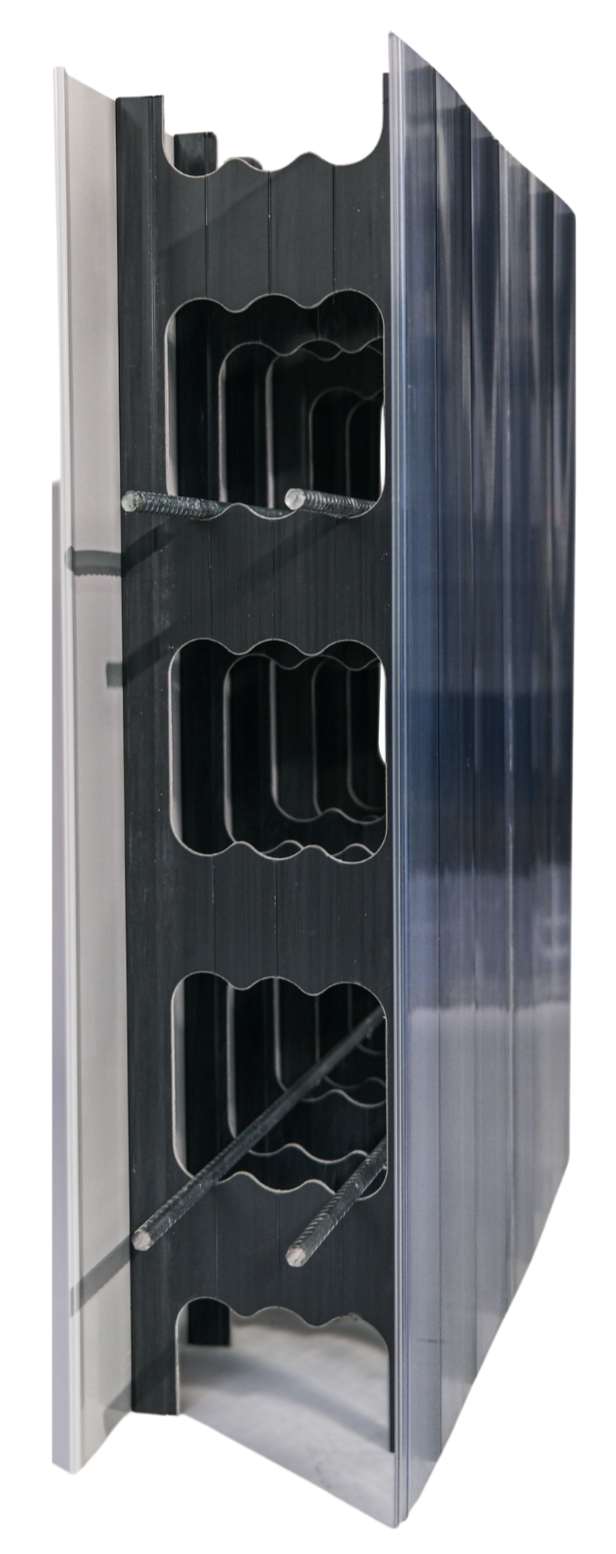

200 mm profile

Depth: 200 mm
Width: 300 mm

Specifications

Standard lengths: 2.8 m · 3.0 m · 3.3 m · 3.6 m · 4.0 m
Custom lengths: 1.0 m – 8.0 m

Accessories

Bottom track BT-200
Top cap TC-200
Panel connector PC-200
End caps ECM-200 · ECF-200
Junction track JT-200
Panel spacer PS-200
Corner piece CP-200
Curved panel CVPD-200

Download 200 mm accessory details (PDF) →

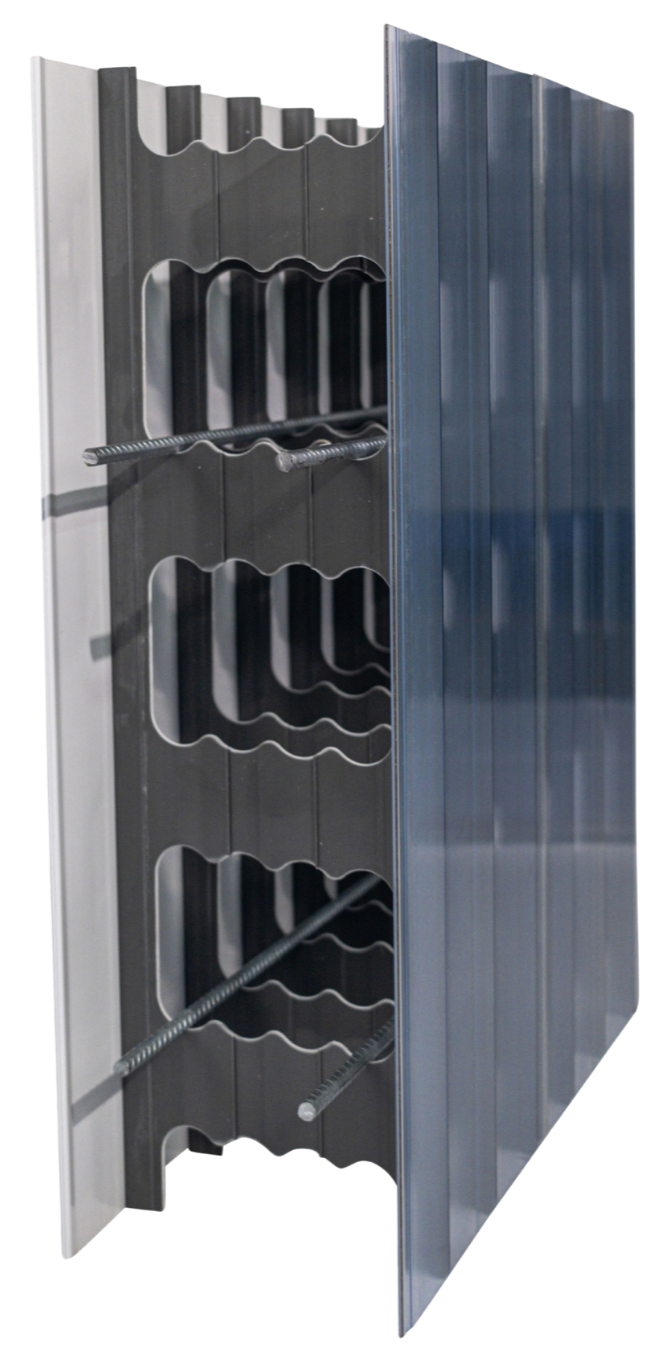

250 mm profile

Depth: 250 mm
Width: 300 mm

Specifications

Standard lengths: 2.8 m · 3.0 m · 3.3 m · 3.6 m · 4.0 m
Custom lengths: 1.0 m – 8.0 m

Accessories

Bottom track BT-250
Top cap TC-250
Panel connector PC-250
End caps ECM-250 · ECF-250
Junction track JT-250
Panel spacer PS-250
Corner piece CP-250
Curved panel CVPD-250

Download 250 mm accessory details (PDF) →

The Clearform system

Four profiles. One clear approach.

Choose from Clear, Clear & White, or White panels. Standard and custom lengths are available across all four profiles.

Panels stay in place after the concrete pour, with no stripping stage. Explore installation and engineering documents for your application.

Browse technical resources →
